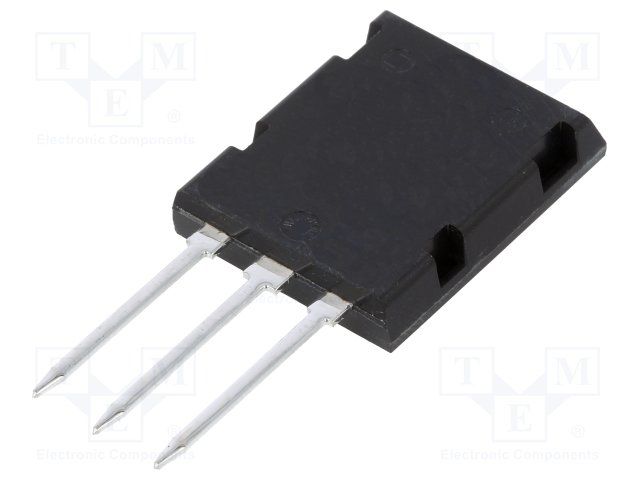

The IXFL210N30P3 is a 300V MOSFET from Ixys, featuring a continuous drain current of 108A and a maximum operating temperature range of -55°C to 150°C. It has a maximum power dissipation of 520W and is packaged in a rail/tube format for through-hole mounting. The device is RoHS compliant and part of the HiPerFET and Polar3 series. The IXFL210N30P3 has an input capacitance of 16.2nF and a turn-on delay time of 46ns, with a turn-off delay time of 94ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys IXFL210N30P3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Continuous Drain Current (ID) | 108A |
| Drain to Source Voltage (Vdss) | 300V |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 26.42mm |
| Input Capacitance | 16.2nF |
| Length | 20.29mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 520W |
| Mount | Through Hole |
| Packaging | Rail/Tube |
| Rds On Max | 16mR |
| RoHS Compliant | Yes |
| Series | HiPerFET™, Polar3™ |
| Turn-Off Delay Time | 94ns |
| Turn-On Delay Time | 46ns |
| Width | 5.31mm |
| RoHS | Compliant |
