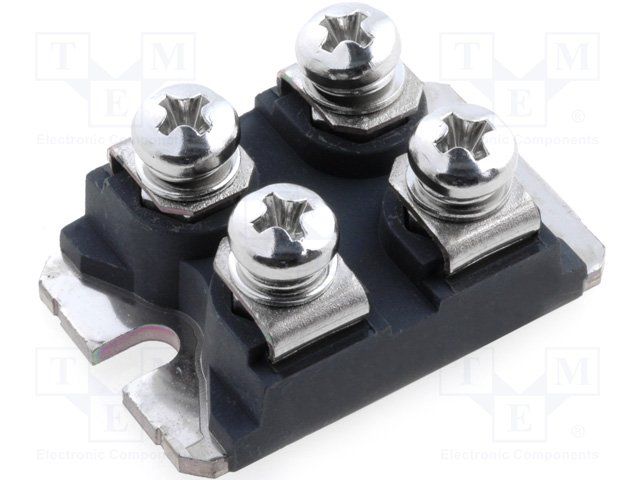

N-Channel Power MOSFET, 70V Drain-Source Voltage, 340A Continuous Drain Current, and 4mΩ Drain-Source On-Resistance. Features a 700W maximum power dissipation and operates within a temperature range of -55°C to 150°C. Designed for chassis mounting with screw terminals, this single-element silicon Metal-Oxide-Semiconductor FET is housed in a SOT-227-4 package. Includes a 33ns fall time and 200ns turn-off delay time, with an input capacitance of 12.2nF. This RoHS compliant component is lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys IXFN340N07 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-227-4 |
| Continuous Drain Current (ID) | 340A |
| Drain to Source Breakdown Voltage | 70V |
| Drain to Source Resistance | 4mR |
| Drain to Source Voltage (Vdss) | 70V |
| Drain-source On Resistance-Max | 4MR |
| Fall Time | 33ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 12.2nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 700W |
| Mount | Chassis Mount, Screw |
| Number of Elements | 1 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 700W |
| Radiation Hardening | No |
| Rds On Max | 4mR |
| RoHS Compliant | Yes |
| Series | HiPerFET™ |
| Turn-Off Delay Time | 200ns |
| RoHS | Compliant |
