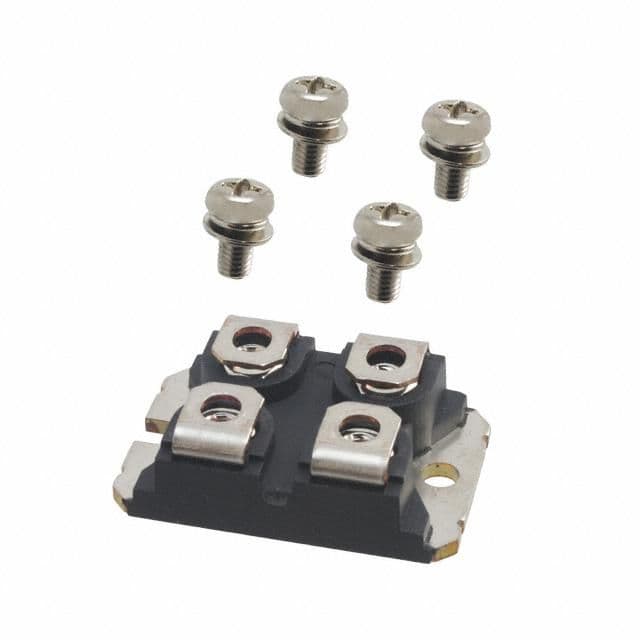

N-Channel Power MOSFET featuring 600V drain-to-source breakdown voltage and 72A continuous drain current. This silicon Metal-oxide Semiconductor FET offers a low 75mΩ Rds On resistance and a maximum power dissipation of 1.04kW. Designed for chassis or panel mounting, it comes in a SOT-227-4 package with a maximum operating temperature of 150°C. Key switching characteristics include a 28ns turn-on delay and 24ns fall time.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys IXFN82N60P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-227-4 |
| Continuous Drain Current (ID) | 72A |
| Drain to Source Breakdown Voltage | 600V |
| Drain to Source Resistance | 750mR |
| Drain to Source Voltage (Vdss) | 600V |
| Fall Time | 24ns |
| Gate to Source Voltage (Vgs) | 30V |
| Height | 9.6mm |
| Input Capacitance | 23nF |
| Lead Free | Lead Free |
| Length | 38.2mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.04kW |
| Mount | Chassis Mount, Panel |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 1.04kW |
| Rds On Max | 75mR |
| RoHS Compliant | Yes |
| Series | PolarHV™ |
| Turn-Off Delay Time | 79ns |
| Turn-On Delay Time | 28ns |
| Width | 25.07mm |
| RoHS | Compliant |
Download the complete datasheet for Ixys IXFN82N60P to view detailed technical specifications.
