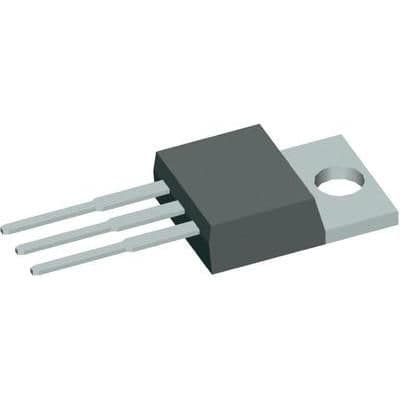

The IXFP7N100P is a high-power N-channel MOSFET from Ixys, featuring a TO-220AB package and through-hole mounting. It has a maximum operating temperature range of -55°C to 150°C and is compliant with RoHS regulations. The device has a maximum power dissipation of 300W and a continuous drain current of 7A, with a drain-to-source breakdown voltage of 1kV and a drain-to-source resistance of 1.9R.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys IXFP7N100P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220AB |
| Continuous Drain Current (ID) | 7A |
| Drain to Source Breakdown Voltage | 1kV |
| Drain to Source Resistance | 1.9R |
| Drain to Source Voltage (Vdss) | 1kV |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 2.59nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300W |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 300W |
| Rds On Max | 1.9R |
| RoHS Compliant | Yes |
| Series | HiPerFET™, PolarP2™ |
| RoHS | Compliant |
