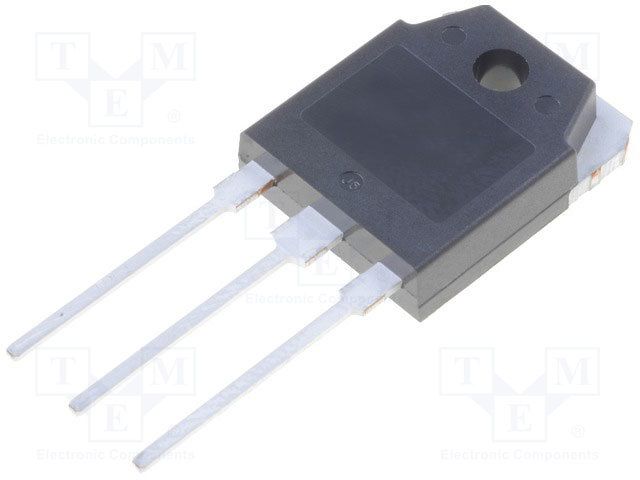

N-channel Silicon Metal-oxide Semiconductor FET, designed for high-power applications. Features a 600V drain-to-source breakdown voltage and a continuous drain current capability of 50A. Offers a low drain-to-source resistance of 145mΩ at a gate-to-source voltage of 30V. This through-hole mounted component boasts a maximum power dissipation of 1.04kW and operates within a temperature range of -55°C to 150°C. Includes fast switching characteristics with a fall time of 17ns and turn-off delay of 62ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys IXFQ50N60P3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Continuous Drain Current (ID) | 50A |
| Drain to Source Breakdown Voltage | 600V |
| Drain to Source Resistance | 145mR |
| Drain to Source Voltage (Vdss) | 600V |
| Fall Time | 17ns |
| Gate to Source Voltage (Vgs) | 30V |
| Height | 20.3mm |
| Input Capacitance | 6.3nF |
| Lead Free | Lead Free |
| Length | 15.8mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.04kW |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 1.04kW |
| Rds On Max | 145mR |
| RoHS Compliant | Yes |
| Series | Polar3™ HiPerFET™ |
| Turn-Off Delay Time | 62ns |
| Turn-On Delay Time | 31ns |
| Width | 4.9mm |
| RoHS | Compliant |
