Technical Specifications
Ixys IXFX140N25T technical specifications.
General
| Package/Case | TO-247-3 |
| Continuous Drain Current (ID) | 140A |
| Drain to Source Voltage (Vdss) | 250V |
| Input Capacitance | 19nF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 960W |
| Mount | Through Hole |
| Packaging | Rail/Tube |
| Rds On Max | 17mR |
| RoHS Compliant | Yes |
| Series | GigaMOS™ |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IXFX140N25T Datasheet
Download the complete datasheet for Ixys IXFX140N25T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

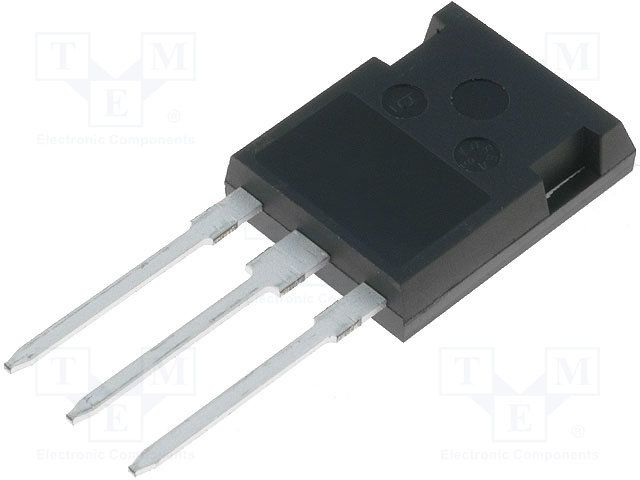

Product Images
