Technical Specifications
Ixys IXFX44N80P technical specifications.
General
| Package/Case | TO-247-3 |
| Continuous Drain Current (ID) | 44A |
| Drain to Source Breakdown Voltage | 800V |
| Drain to Source Resistance | 190mR |
| Drain to Source Voltage (Vdss) | 800V |
| Fall Time | 27ns |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 12nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.04kW |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 1.2kW |
| Rds On Max | 190mR |
| RoHS Compliant | Yes |
| Series | PolarHV™ HiPerFET™ |
| Turn-Off Delay Time | 75ns |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IXFX44N80P Datasheet
Download the complete datasheet for Ixys IXFX44N80P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

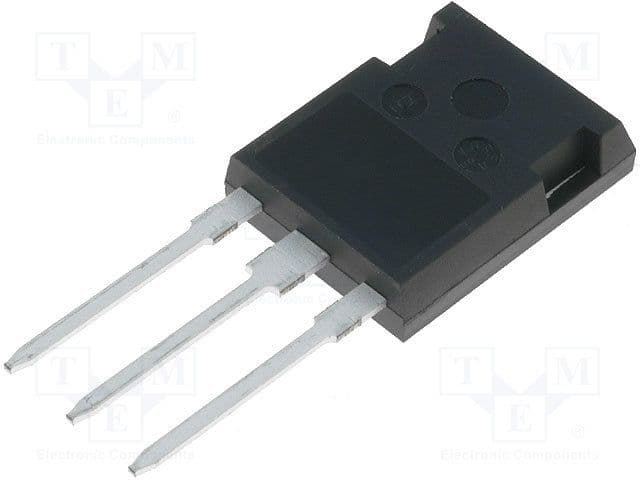

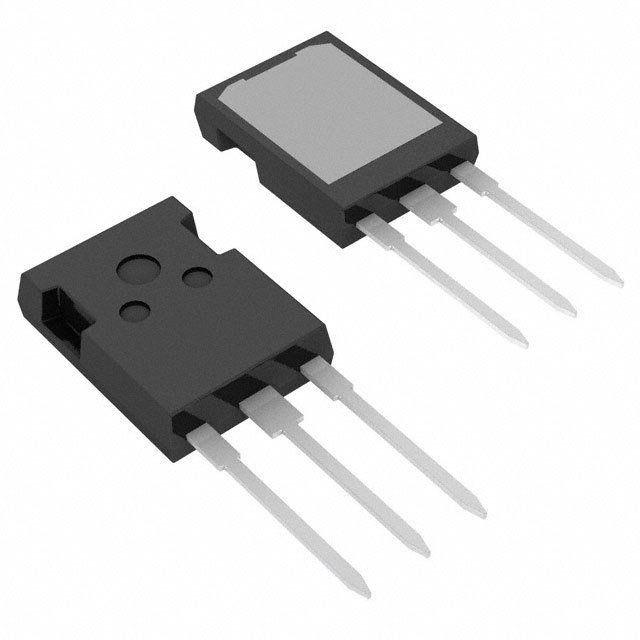

Product Images
