Technical Specifications
Ixys IXGN82N120C3H1 technical specifications.
General
| Package/Case | SOT-227-4 |
| Collector Emitter Breakdown Voltage | 1.2kV |
| Collector Emitter Voltage (VCEO) | 1.2kV |
| Collector-emitter Voltage-Max | 3.9V |
| Input | Standard |
| Input Capacitance | 7.9nF |
| Max Collector Current | 130A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 595W |
| Mount | Chassis Mount, Screw |
| NTC Thermistor | No |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Series | GenX3™ |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IXGN82N120C3H1 Datasheet
Download the complete datasheet for Ixys IXGN82N120C3H1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

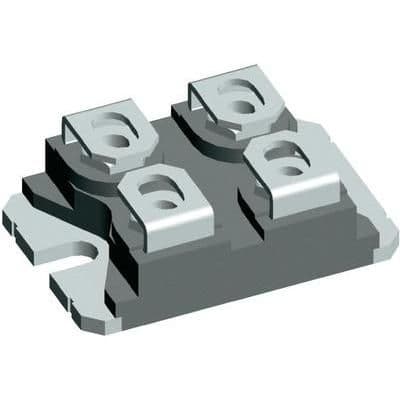

Product Images
