Ixys
IXGR40N60B2
Insulated Gate Bipolar Transistor, 60A I(C), 600V V(BR)CES, N-Channel, ISOPLUS 247, 3 PIN
PackageTO-247AD
MountingThrough Hole
Power167W
Quick Jump:
Technical Specifications
Ixys IXGR40N60B2 technical specifications.
General
Package/Case
TO-247AD
Collector Emitter Breakdown Voltage
600V
Collector Emitter Saturation Voltage
1.9V
Collector Emitter Voltage (VCEO)
600V
Collector-emitter Voltage-Max
1.9V
Input Type
STANDARD
Max Collector Current
60A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
167W
Mount
Through Hole
Package Quantity
30
Packaging
Rail/Tube
Power Dissipation
167W
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
HiPerFAST™
Compliance
RoHS
Compliant
Datasheet
Ixys IXGR40N60B2 Datasheet
Download the complete datasheet for Ixys IXGR40N60B2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

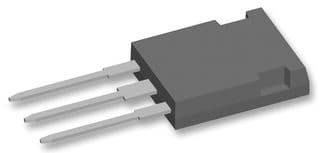

Product Images
