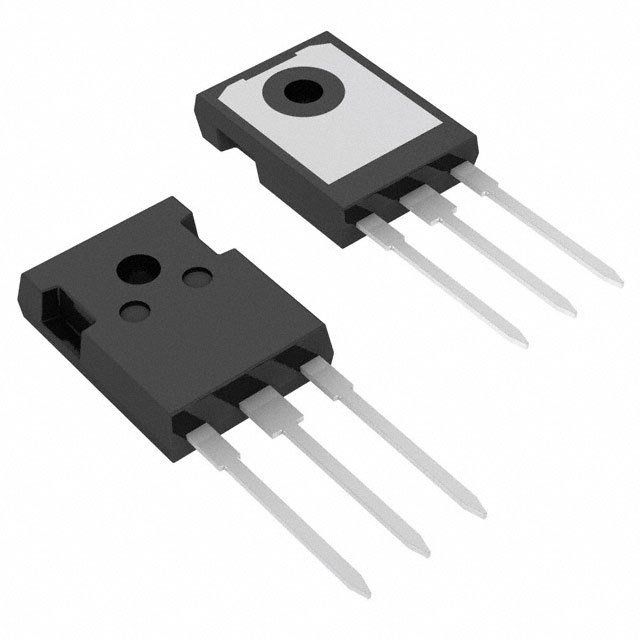

P-channel MOSFET, TO-247 package, featuring 500V drain-source breakdown voltage and 20A continuous drain current. Offers a low 450mΩ drain-source resistance (Rds On Max) and a maximum power dissipation of 460W. Operates across a wide temperature range from -55°C to 150°C, with an input capacitance of 5.12nF and a turn-off delay time of 80ns. Through-hole mounting and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys IXTH20P50P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-247 |
| Continuous Drain Current (ID) | 20A |
| Drain to Source Breakdown Voltage | -500V |
| Drain to Source Resistance | 450mR |
| Drain to Source Voltage (Vdss) | 500V |
| Input Capacitance | 5.12nF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 460W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | P-CHANNEL |
| Power Dissipation | 460W |
| Rds On Max | 450mR |
| RoHS Compliant | Yes |
| Series | PolarP™ |
| Turn-Off Delay Time | 80ns |
| RoHS | Compliant |
