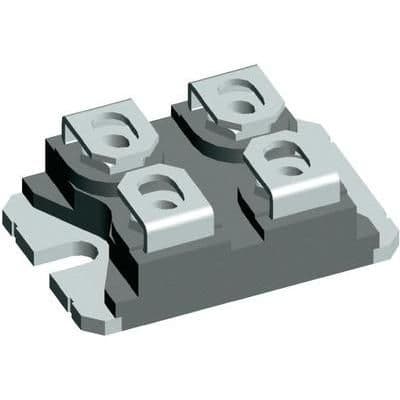

The IXTN30N100L is a high-power N-channel MOSFET with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It has a continuous drain current of 30A and a drain to source breakdown voltage of 1kV. The device is packaged in a SOT-227-4 plastic package and is RoHS compliant. It is suitable for high-power applications and can dissipate up to 800W of power.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys IXTN30N100L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-227-4 |
| Continuous Drain Current (ID) | 30A |
| Drain to Source Breakdown Voltage | 1kV |
| Drain to Source Resistance | 450mR |
| Drain to Source Voltage (Vdss) | 1kV |
| Drain-source On Resistance-Max | 450MR |
| Fall Time | 78ns |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 13.7nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 800W |
| Mount | Chassis Mount, Screw |
| Number of Elements | 1 |
| Package Quantity | 10 |
| Packaging | Bulk |
| Polarity | N-CHANNEL |
| Power Dissipation | 800W |
| Radiation Hardening | No |
| Rds On Max | 450mR |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 100ns |
| RoHS | Compliant |
