Ixys
IXTP14N60PM
Power Field-Effect Transistor, 7A I(D), 600V, 0.55ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, PLASTIC, TO-220, 3 PIN
PackageTO-220-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys IXTP14N60PM technical specifications.
General
Package/Case
TO-220-3
Continuous Drain Current (ID)
7A
Drain to Source Voltage (Vdss)
600V
Input Capacitance
2.5nF
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
75W
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Rds On Max
550mR
RoHS Compliant
Yes
Series
PolarHV™
Compliance
RoHS
Compliant
Datasheet
Ixys IXTP14N60PM Datasheet
Download the complete datasheet for Ixys IXTP14N60PM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

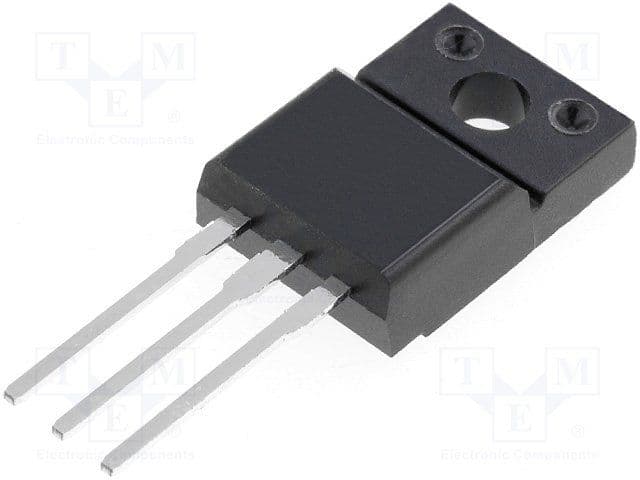

Product Images
