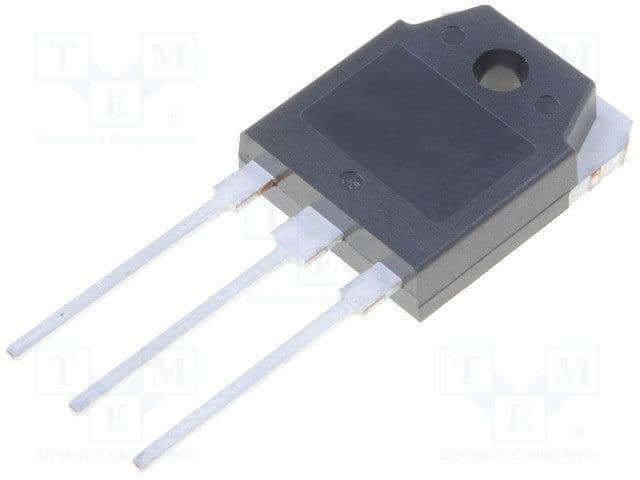

The Ixys IXTQ450P2 is a high-power N-channel MOSFET with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It has a maximum power dissipation of 300W and a drain to source breakdown voltage of 500V. The device is packaged in a TO-3P, 3 PIN plastic package and is available in a rail/Tube packaging option. The IXTQ450P2 is RoHS compliant and features a maximum drain to source resistance of 330mR.
Sign in to ask questions about the Ixys IXTQ450P2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ixys IXTQ450P2 technical specifications.
| Continuous Drain Current (ID) | 16A |
| Drain to Source Breakdown Voltage | 500V |
| Drain to Source Resistance | 330mR |
| Drain to Source Voltage (Vdss) | 500V |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 2.53nF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300W |
| Mount | Through Hole |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 300W |
| Rds On Max | 330mR |
| RoHS Compliant | Yes |
| Series | PolarP2™ |
| RoHS | Compliant |
