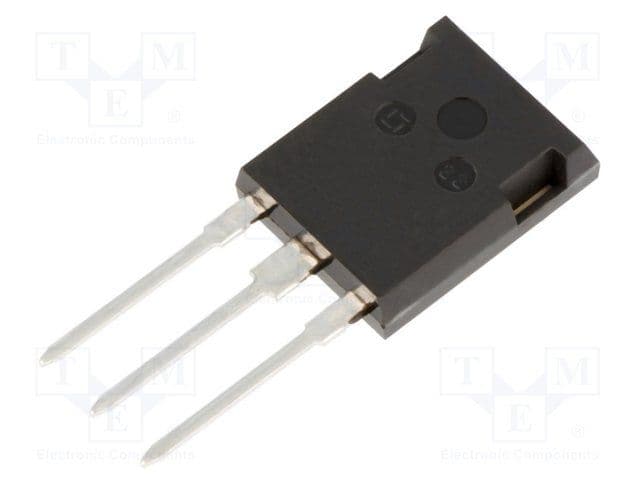

The IXTR20P50P is a high-power MOSFET with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It has a maximum power dissipation of 190W and a maximum drain to source voltage of 500V. The device is packaged in a 3-pin ISOPLUS247 package and is available in quantities of 30. It is compliant with RoHS regulations and is suitable for use in high-power applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys IXTR20P50P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Continuous Drain Current (ID) | 13A |
| Drain to Source Voltage (Vdss) | 500V |
| Input Capacitance | 5.12nF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 190W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Rds On Max | 490mR |
| RoHS Compliant | Yes |
| Series | PolarP™ |
| RoHS | Compliant |
