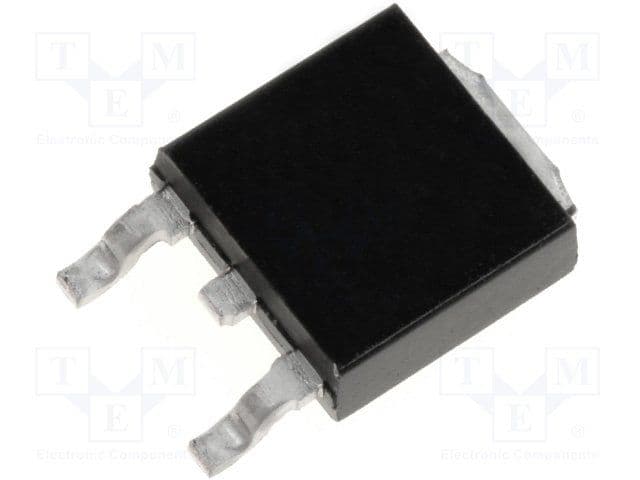

The IXTY48P05T is a TrenchP MOSFET from Ixys, featuring a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It has a continuous drain current of 48A and a drain to source voltage of 50V. The device is packaged in a TO-252, 3 PIN package and is lead free and RoHS compliant. It has a maximum power dissipation of 150W and an input capacitance of 3.66nF.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys IXTY48P05T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ixys IXTY48P05T technical specifications.
| Package/Case | TO-252 |
| Continuous Drain Current (ID) | 48A |
| Drain to Source Voltage (Vdss) | 50V |
| Input Capacitance | 3.66nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150W |
| Mount | Surface Mount |
| Packaging | Rail/Tube |
| Rds On Max | 30mR |
| RoHS Compliant | Yes |
| Series | TrenchP™ |
| RoHS | Compliant |
