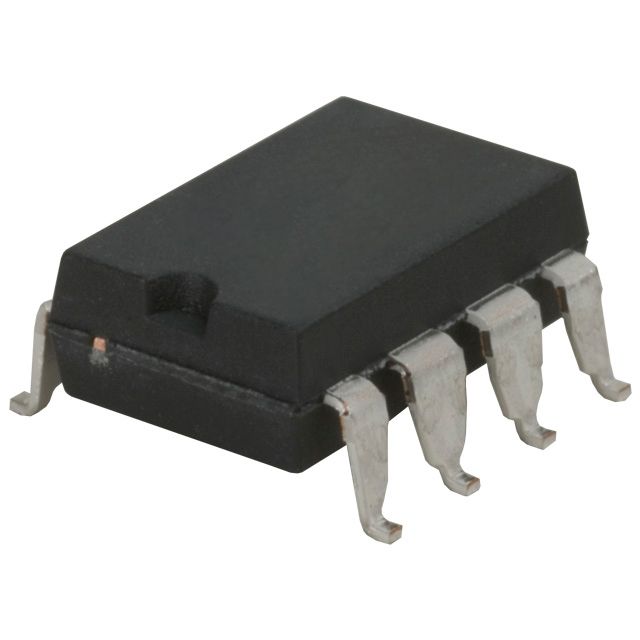

Surface mount solid state relay featuring DC input and AC/DC output. This SPST relay handles up to 1A load current and 60V maximum output voltage, with a 50mA DC input requirement. Offering 3.75kV isolation voltage, it operates within a -40°C to 85°C temperature range and is packaged in a lead-free, RoHS compliant 8-pin DIP SMD with gull wing termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys LBA716STR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ixys LBA716STR technical specifications.
| Package/Case | SMD/SMT |
| Height | 3.302mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Length | 9.652mm |
| Load Current | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 60V |
| Mount | Surface Mount |
| Output Current | 1A |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LBA, OptoMOS® |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Width | 6.35mm |
| RoHS | Compliant |
