Ixys
MCC95-16IO1B
IXYS SEMICONDUCTOR MCC95-16IO1B Thyristor, 1600 V, 200 mA, 116 A, 180 A, TO-240AA, 3 Pins
PackageTO-240AA
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Ixys MCC95-16IO1B technical specifications.
General
Package/Case
TO-240AA
Height
30mm
Hold Current
200mA
Lead Free
Lead Free
Length
92mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.6kV
Mount
Chassis Mount, Panel, Screw
Package Quantity
6
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Voltage
1.6kV
RMS Current (Irms)
180A
RoHS Compliant
Yes
DC Rated Voltage
1.6kV
Width
20.8mm
Compliance
RoHS
Compliant
Datasheet
Ixys MCC95-16IO1B Datasheet
Download the complete datasheet for Ixys MCC95-16IO1B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

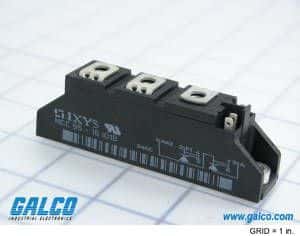

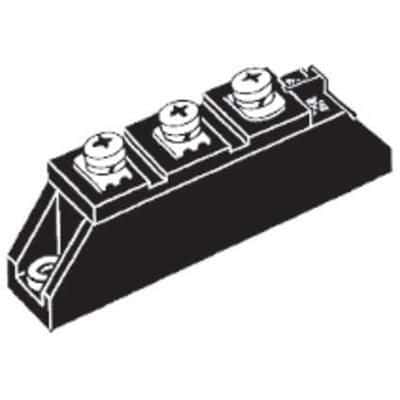

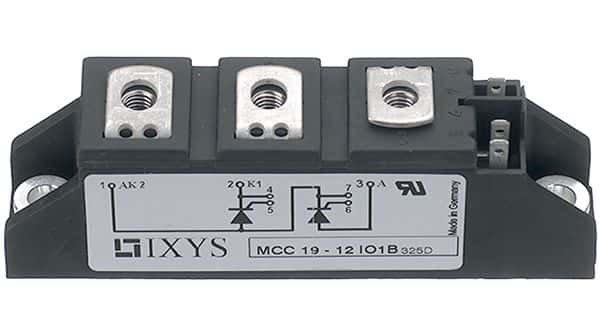

Product Images
