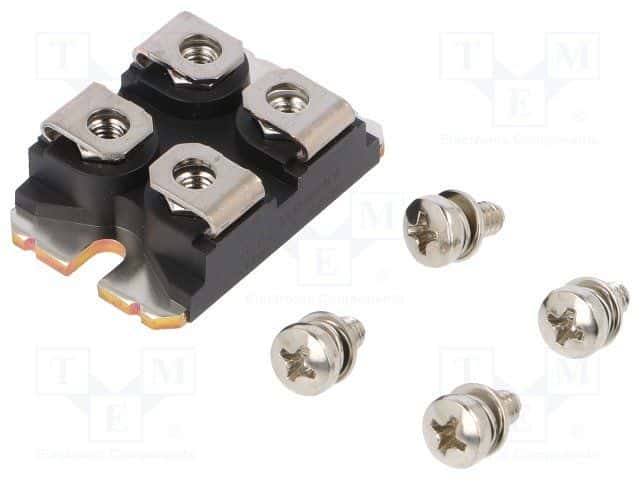

SCR power module featuring 1600V repetitive peak reverse and forward blocking voltage. Rated for 80A average on-state current with a 1160A surge current capability. This 4-pin SOT-227B package module offers screw mounting and operates from -40 to 150°C. Key electrical specifications include a 1.6V peak on-state voltage at 150A and a maximum holding current of 200mA.
PackageSOT-227B
MountingScrew
Quick Jump:
Technical Specifications
Ixys MCO75-16io1 technical specifications.
General
| Package Family Name | SOT |
| Package/Case | SOT-227B |
| Package Description | Small Outline Transistor |
| Lead Shape | Screw |
| Pin Count | 4 |
| PCB | 4 |
| Package Length (mm) | 38.23(Max) |
| Package Width (mm) | 25.42(Max) |
| Seated Plane Height (mm) | 12.22(Max) |
| Pin Pitch (mm) | 15.11(Max) |
| Mounting | Screw |
| Repetitive Peak Reverse Voltage | 1600V |
| Maximum Holding Current | 200mA |
| Rated Average On-State Current | 80A |
| Maximum Gate Peak Inverse Voltage | 10V |
| Maximum Gate Trigger Current | 100mA |
| Maximum Gate Trigger Voltage | 1.5V |
| Peak On-State Voltage | 1.6@150AV |
| Repetitive Peak Off-State Current | 0.05mA |
| Operating Junction Temperature | -40 to 150°C |
| Repetitive Peak Forward Blocking Voltage | 1600V |
| Surge Current Rating | 1160A |
| Min Operating Temperature | -40°C |
| Max Operating Temperature | 125°C |
Compliance
| Cage Code | 6D7E2 |
| EU RoHS | Yes |
| HTS Code | 8541300080 |
| Schedule B | 8541300080 |
| Automotive | No |
| AEC Qualified | No |
| PPAP | No |
| Radiation Hardening | No |
| RoHS Versions | 2011/65/EU, 2015/863 |
