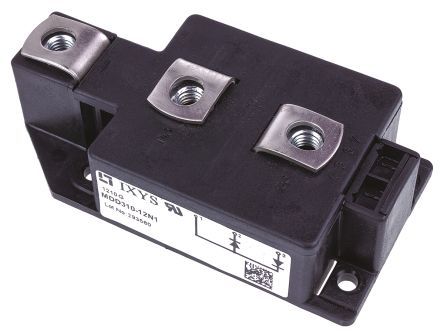

The Ixys MDD310-12N1 is a general purpose rectifier with a maximum operating temperature of 150°C and a minimum operating temperature of -40°C. It has a maximum repetitive reverse voltage of 1.2kV and a maximum reverse current of 40mA. The module is packaged in a bulk quantity of two and is lead free. It can be mounted on a chassis, panel, or screw.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys MDD310-12N1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Average Rectified Current | 305A |
| Package/Case | Module |
| Forward Current | 305A |
| Height | 32mm |
| Lead Free | Lead Free |
| Length | 116mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.2kV |
| Max Reverse Current | 40mA |
| Max Reverse Voltage (DC) | 1.2kV |
| Mount | Chassis Mount, Panel, Screw |
| Package Quantity | 2 |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 12.2kA |
| Reverse Voltage | 1.2kV |
| RoHS Compliant | Yes |
| Width | 60mm |
| RoHS | Compliant |
