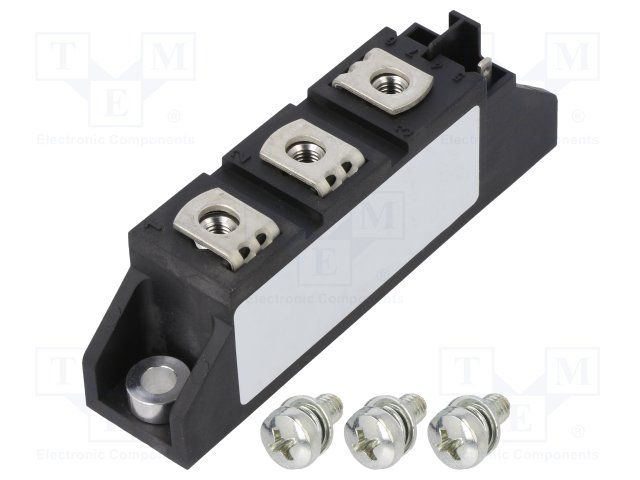

The Ixys MDD56-18N1B is a general purpose rectifier diode with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It features a maximum reverse voltage of 1.8kV and a peak non-repetitive surge current of 1.65kA. The diode is packaged in a TO-240AA case and is mounted via screw on a chassis. It is compliant with RoHS regulations and is available in a bulk packaging quantity of 6.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys MDD56-18N1B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Average Rectified Current | 95A |
| Package/Case | TO-240AA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 1.8kV |
| Mount | Chassis Mount, Screw |
| Package Quantity | 6 |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 1.65kA |
| Reverse Voltage | 1.8kV |
| RoHS Compliant | Yes |
| Series | MDD56 |
| RoHS | Compliant |
