Technical Specifications
Ixys MDD95-08N1B technical specifications.
General
| Average Rectified Current | 120A |
| Package/Case | TO-240AA |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Max Reverse Current | 15mA |
| Max Reverse Voltage (DC) | 800V |
| Mount | Chassis Mount, Screw |
| Package Quantity | 36 |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 3.3kA |
| Radiation Hardening | No |
| Reverse Voltage | 800V |
| RoHS Compliant | Yes |
| Series | MDD95 |
| DC Rated Voltage | 800V |
Compliance
| RoHS | Compliant |
Datasheet
Ixys MDD95-08N1B Datasheet
Download the complete datasheet for Ixys MDD95-08N1B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

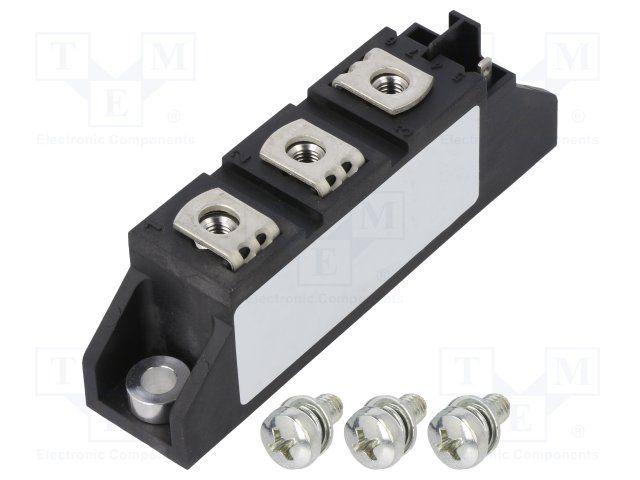

Product Images
