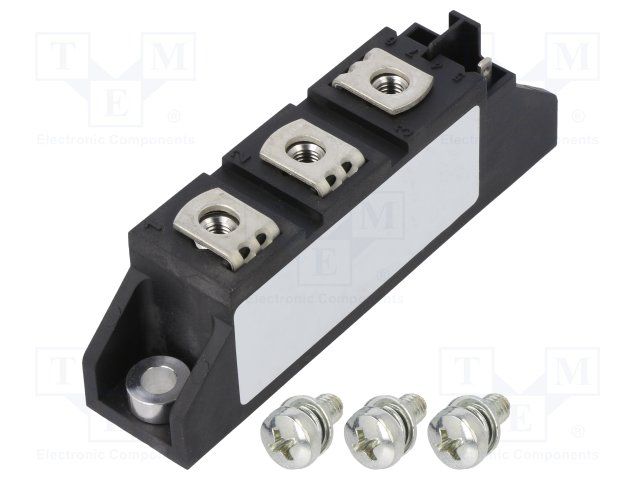

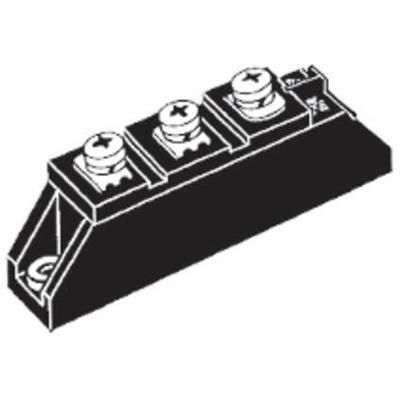

The MEA95-06DA is a 600V general purpose rectifier with an average rectified current of 95A. It features a TO-240AA package and is mounted via screw to a chassis. The device operates over a temperature range of -40°C to 150°C and is RoHS compliant. The MEA95-06DA has a reverse recovery time of 300ns and a peak non-repetitive surge current of 1.3kA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys MEA95-06DA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ixys MEA95-06DA technical specifications.
| Average Rectified Current | 95A |
| Package/Case | TO-240AA |
| Max Forward Surge Current (Ifsm) | 1.2kA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 600V |
| Mount | Chassis Mount, Screw |
| Package Quantity | 6 |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 1.3kA |
| Reverse Recovery Time | 300ns |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| Series | MEA95 |
| RoHS | Compliant |
Download the complete datasheet for Ixys MEA95-06DA to view detailed technical specifications.
