PackageTO-240AA
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Ixys MEE95-06DA technical specifications.
General
Average Rectified Current
95A
Package/Case
TO-240AA
Max Forward Surge Current (Ifsm)
1.2kA
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Reverse Voltage (DC)
600V
Mount
Chassis Mount, Screw
Package Quantity
6
Packaging
Bulk
Peak Non-Repetitive Surge Current
1.3kA
Radiation Hardening
No
Reverse Recovery Time
300ns
Reverse Voltage
600V
RoHS Compliant
Yes
Series
MEE95
Compliance
RoHS
Compliant
Datasheet
Ixys MEE95-06DA Datasheet
Download the complete datasheet for Ixys MEE95-06DA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

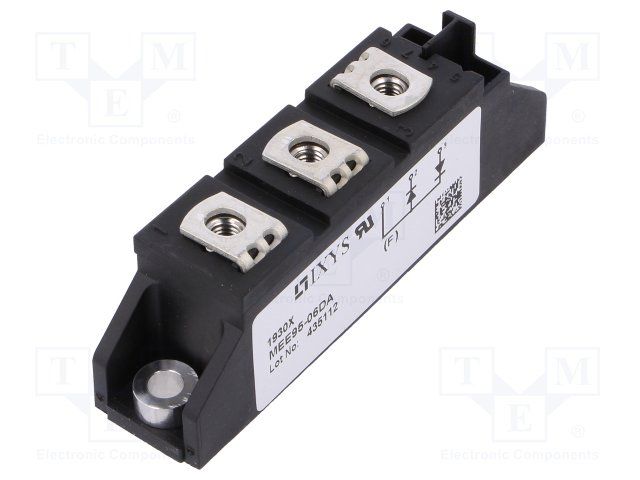

Product Images
