High-performance rectifier diode module for single-phase applications. Features a 1.2kV repetitive reverse voltage (Vrrm) and 1.2kV DC reverse voltage. Offers a substantial 453A average rectified current and a 4.8kA maximum forward surge current. Designed for chassis mounting with screw terminals, operating from -40°C to 150°C. This silicon rectifier is RoHS compliant and lead-free.
PackageModule
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Ixys MEO450-12DA technical specifications.
General
| Average Rectified Current | 453A |
| Package/Case | Module |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 4.8kA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.2kV |
| Max Reverse Current | 24mA |
| Max Reverse Voltage (DC) | 1.2kV |
| Mount | Chassis Mount, Screw |
| Package Quantity | 6 |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 5.28kA |
| Radiation Hardening | No |
| Reverse Recovery Time | 500ns |
| Reverse Recovery Time-Max | 500ns |
| Reverse Voltage | 1.2kV |
| RoHS Compliant | Yes |
| Series | MEO450 |
Compliance
| RoHS | Compliant |
Datasheet
Ixys MEO450-12DA Datasheet
Download the complete datasheet for Ixys MEO450-12DA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

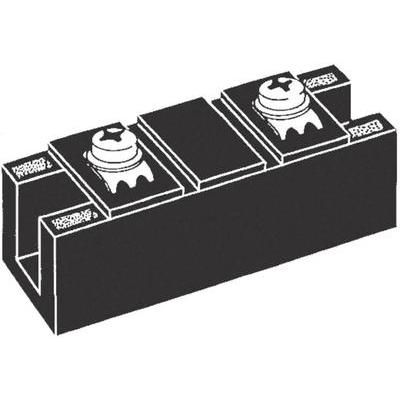

Product Images
