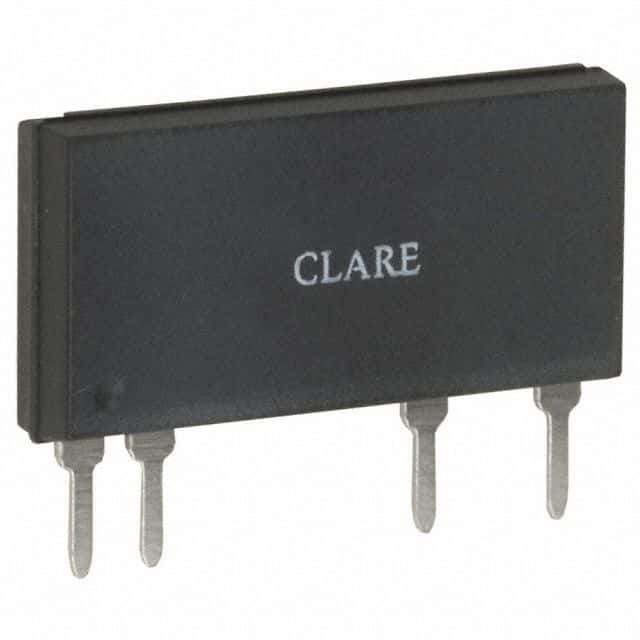

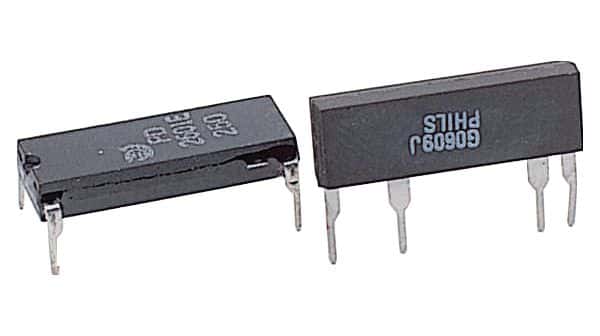

Single-pole, single-throw (SPST) solid-state relay with DC input and AC output. Features a 100mA DC input current, 1A AC output current, and a 600V AC output voltage rating. Offers 3.75kV isolation voltage and operates within a -40°C to 85°C temperature range. Packaged in a 4-pin SIP with through-hole mounting, this RoHS compliant component is suitable for various AC switching applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys PS2601 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SIP |
| Forward Current | 5mA |
| Height | 3.3mm |
| Input Current | 100mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Isolation Voltage-Max | 3.75kV |
| Lead Free | Lead Free |
| Length | 19.2mm |
| Load Current | 1A |
| Max Input Current | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 260V |
| Max Power Dissipation | 1.6W |
| Mount | Through Hole |
| Number of Channels | 1 |
| Output Current | 1A |
| Output Voltage | 600V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PS |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 6.35mm |
| RoHS | Compliant |
