Three-phase bridge rectifier module with a 1200V repetitive reverse voltage rating and 88A average rectified current. Features a 400V AC voltage rating, 820A maximum forward surge current, and 135W power dissipation. Operates from -40°C to 150°C and is chassis or panel mountable. This silicon component is RoHS compliant.
PackageModule
MountingChassis Mount, Panel, Screw
Power135W
Quick Jump:
Technical Specifications
Ixys VUO82-12NO7 technical specifications.
General
| Average Rectified Current | 88A |
| Package/Case | Module |
| Forward Current | 88A |
| Height | 30mm |
| Lead Free | Lead Free |
| Length | 72mm |
| Max Forward Surge Current (Ifsm) | 820A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 88A |
| Max Repetitive Reverse Voltage (Vrrm) | 1.2kV |
| Max Reverse Current | 300uA |
| Max Reverse Leakage Current | 1.5mA |
| Max Surge Current | 750A |
| Mount | Chassis Mount, Panel, Screw |
| Number of Elements | 1 |
| Package Quantity | 10 |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 810A |
| Power Dissipation | 135W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage Rating (AC) | 400V |
| Width | 42mm |
Compliance
| RoHS | Compliant |
Datasheet
Ixys VUO82-12NO7 Datasheet
Download the complete datasheet for Ixys VUO82-12NO7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

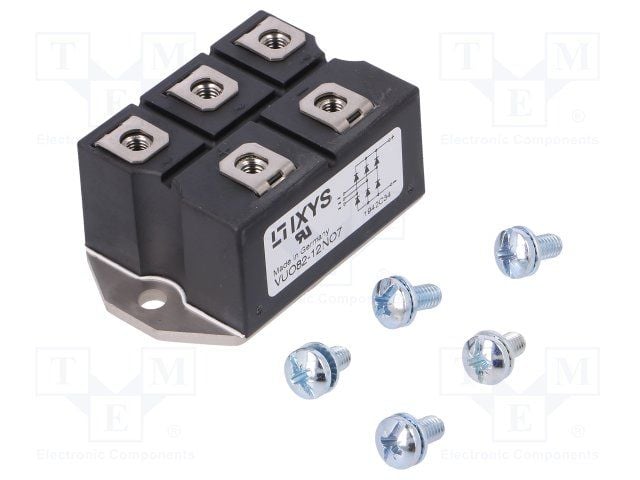

Product Images
