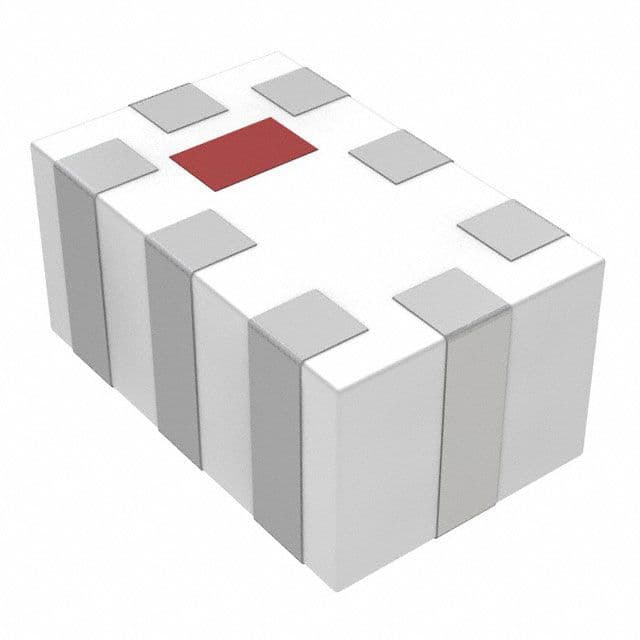

Surface mount ceramic low-pass filter operating at 868MHz with a 20MHz bandwidth. Features 0.5dB insertion loss and 14dB return loss, with 50 Ohm impedance. Designed for 2W input power and packaged in an 0805 (2012 metric) SMD case. Operates across a temperature range of -40°C to 85°C and is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Johanson 0868LP15A020E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Johanson 0868LP15A020E technical specifications.
| Bandwidth | 20MHz |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Frequency | 868MHz |
| Height | 1.05mm |
| Impedance | 50R |
| Input Impedance | 50R |
| Input Power | 2W |
| Insertion Loss | 0.5dB |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 50R |
| Return Loss | 14dB |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| RoHS | Compliant |
