Multilayer Ceramic Capacitor (MLCC) with 0.5pF capacitance and 50V DC rated voltage. Features C0G dielectric for stable performance across a wide temperature range (-55°C to 125°C). Surface mountable in a compact 0402 (1005 metric) case code, measuring 1.02mm x 0.51mm x 0.64mm. Packaged on tape and reel for automated assembly, with RoHS compliance.
Package0402
Voltage50V
Capacitance0.5pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Johanson 500R07S0R5AV4T technical specifications.
General
| Capacitance | 0.5pF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Depth | 0.51mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Height | 0.64mm |
| Length | 1.02mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | S |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.51mm |
Compliance
| RoHS | Compliant |
Datasheet
Johanson 500R07S0R5AV4T Datasheet
Download the complete datasheet for Johanson 500R07S0R5AV4T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

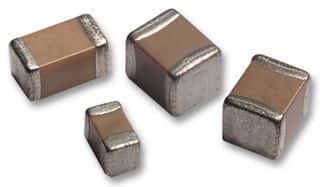

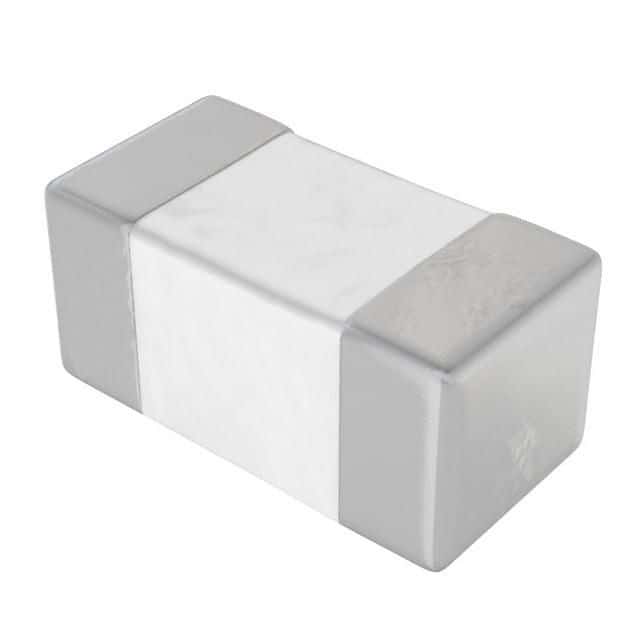

Product Images
