Tubular solenoid actuator featuring a 12.2V DC coil with 4W power and 37.41 ohms resistance. This linear solenoid has a 0.5-inch diameter, 1-inch length, and a 10% duty cycle. It operates with a 39V supply and is rated for 24V DC, utilizing 34AWG wire for mounting. The component includes 1547 turns and weighs 0.871oz.
MountingWire
Quick Jump:
Technical Specifications
Johnson Electric 195202-234 technical specifications.
General
| Coil Power | 4W |
| Coil Resistance | 37.41R |
| Coil Voltage (DC) | 12.2V |
| Diameter | 0.5inch |
| Duty Cycle | 10% |
| Length | 1inch |
| Mount | Wire |
| Number of Turns | 1547 |
| Operating Supply Voltage | 39V |
| Primary Type | Tubular |
| Reach SVHC Compliant | Unknown |
| Series | 195202 |
| DC Rated Voltage | 24V |
| Weight | 0.871oz |
| Wire/Cable Gauge | 34AWG |
Compliance
| RoHS | Compliant |
Datasheet
Johnson Electric 195202-234 Datasheet
Download the complete datasheet for Johnson Electric 195202-234 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

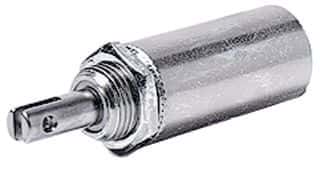

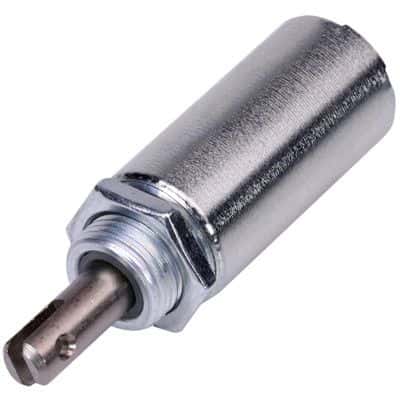

Product Images
