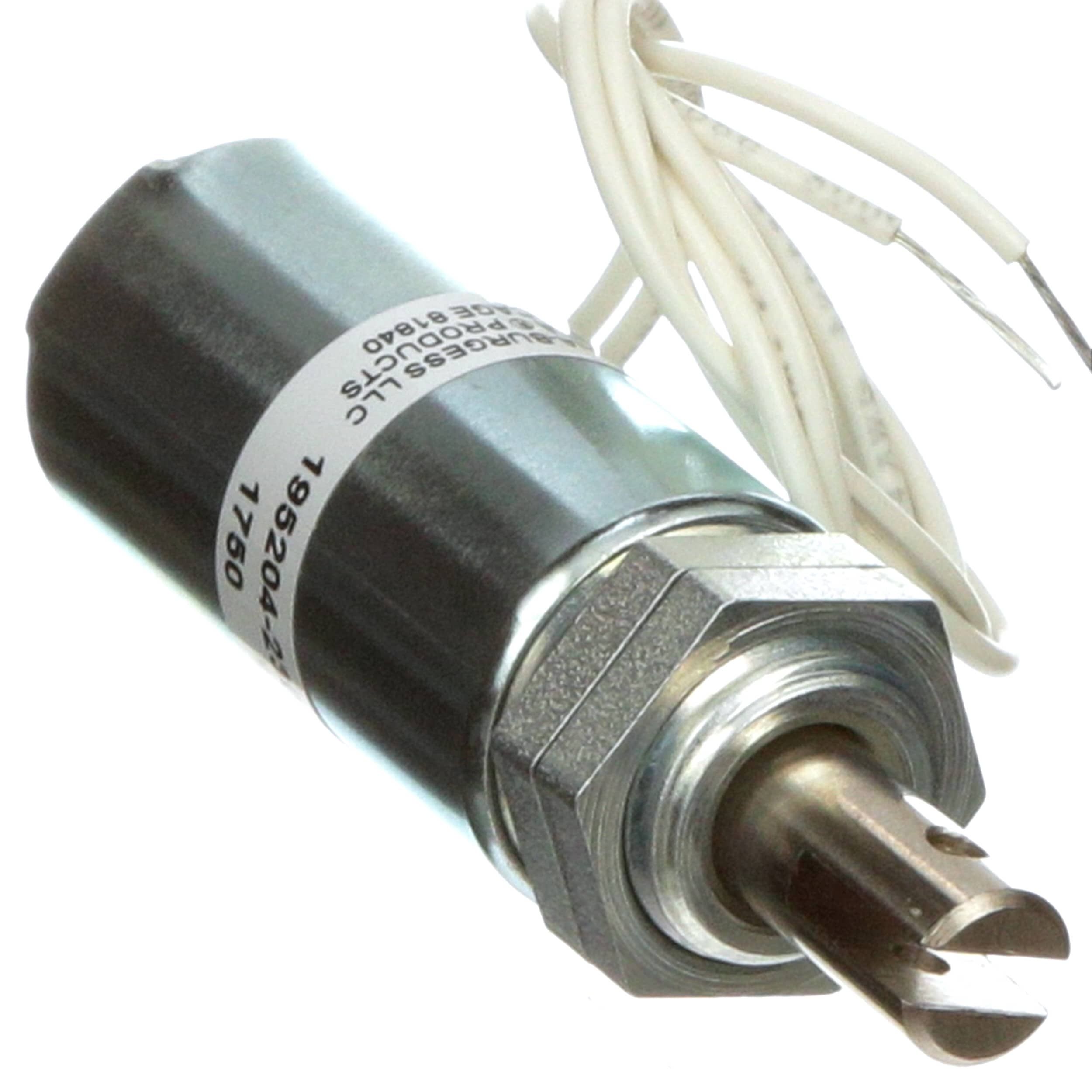

This 12V tubular solenoid coil is rated for 7W of power and has a coil resistance of 20.7 ohms. It measures 0.75 inch in diameter and 1.5 inch in length, with a weight of 2.95 ounces. The coil is designed for wire mounting and is suitable for use with a 24V DC supply voltage.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Johnson Electric 195204-230 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Johnson Electric 195204-230 technical specifications.
| Coil Power | 7W |
| Coil Resistance | 20.7R |
| Coil Voltage (DC) | 12V |
| Diameter | 0.75inch |
| Length | 1.5inch |
| Mount | Wire |
| Number of Turns | 1491 |
| Operating Supply Voltage | 12V |
| Primary Type | Tubular |
| DC Rated Voltage | 24V |
| Weight | 2.95oz |
| RoHS | Compliant |
