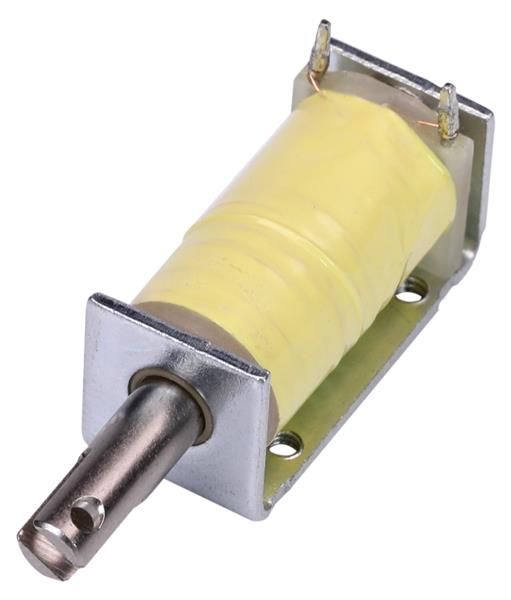

This 12V linear solenoid features a resistance of 11.52 ohms and a length of 23.8mm. It operates at a DC rated voltage of 12V and has a weight of 0.42 ounces. The solenoid's dimensions are 23.8mm in length, 10.4mm in width, 11.7mm in height, and 11.7mm in depth.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Johnson Electric C5-272-B-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Johnson Electric C5-272-B-1 technical specifications.
| Coil Resistance | 11.52R |
| Depth | 11.7mm |
| Height | 11.7mm |
| Length | 23.8mm |
| Number of Turns | 795 |
| Operating Supply Voltage | 12V |
| Primary Type | FRAME |
| Resistance | 11.52R |
| DC Rated Voltage | 12V |
| Weight | 0.42oz |
| Width | 10.4mm |
| RoHS | Compliant |
