150µF, 6.3V polarized aluminum electrolytic capacitor featuring a 2917 (7343 metric) surface mount chip package. This solid polymer capacitor offers 20% tolerance, 10mΩ ESR, and a 4.7A ripple current capability. Operating across a -55°C to 125°C temperature range, it has a 2000-hour life rating and 37.8µA leakage current. The component is RoHS compliant with tin, matte contact plating and is supplied on tape and reel.
Package2917
Voltage6.3V
Capacitance150uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kemet A700X157M006ATE010 technical specifications.
General
| Capacitance | 150uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Contact Plating | Tin, Matte |
| Depth | 4.3mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 10mR |
| Height | 4.3mm |
| Lead Length | 1.3mm |
| Leakage Current | 37.8uA |
| Length | 7.3mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Ripple Current | 4.7A |
| RoHS Compliant | Yes |
| Series | A700 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet A700X157M006ATE010 Datasheet
Download the complete datasheet for Kemet A700X157M006ATE010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

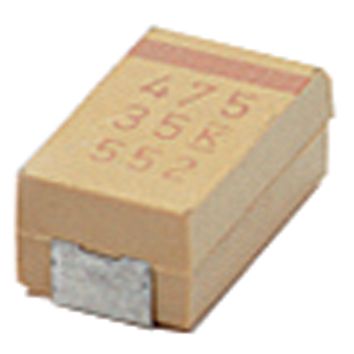

Product Images
