General purpose ceramic chip capacitor, 100nF capacitance, 10V DC rated voltage, and ±10% tolerance. Features X5R dielectric material in a 0402 (1005 metric) surface mount package. Operating temperature range from -55°C to +85°C. RoHS compliant and lead-free.
Package0402
Voltage10V
Capacitance100nF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kemet C0402C104K8PACTU technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Flat |
| Depth | 0.5mm |
| Dielectric | X5R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 5% |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 0.3mm |
| Length | 1mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SMD Comm X5R |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C0402C104K8PACTU Datasheet
Download the complete datasheet for Kemet C0402C104K8PACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

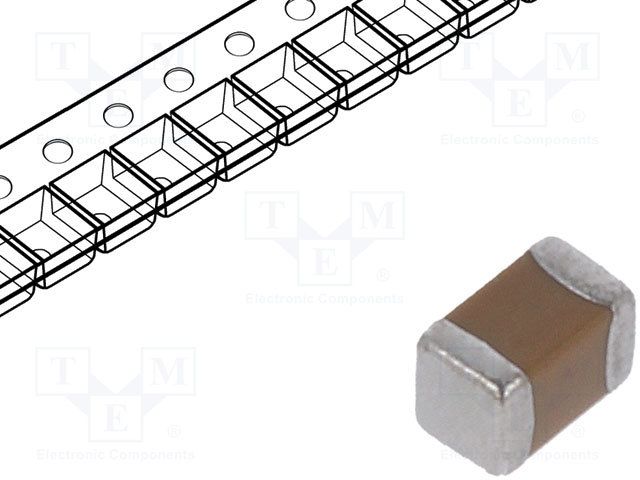

Product Images
