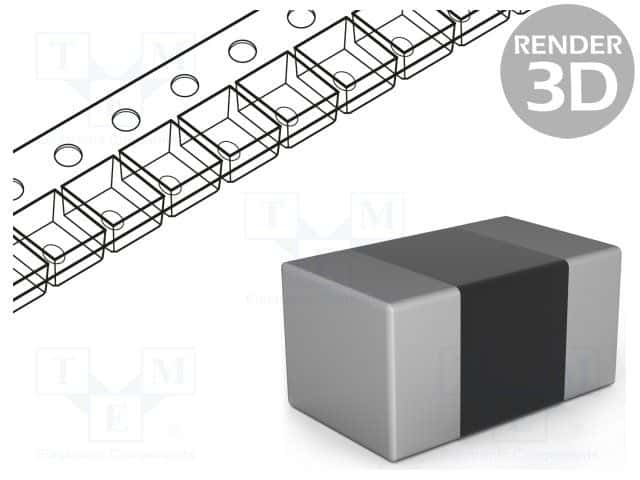

Surface mount ceramic capacitor with 100nF capacitance and 16V DC rating. Features Y5V dielectric material and a 0402 (1005 metric) case size. Operating temperature range is -30°C to +85°C with a tolerance of +80/-20%. This lead-free component is supplied on a 7" reel.
Package0402
Voltage16V
Capacitance100nF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kemet C0402C104Z4VACTU technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Flat |
| Depth | 0.5mm |
| Dielectric | Y5V |
| Dielectric Material | Ceramic |
| Dissipation Factor | 7% |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C0402C |
| Termination | SMD/SMT |
| Tolerance | 80% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Weight | 2.3E-05oz |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C0402C104Z4VACTU Datasheet
Download the complete datasheet for Kemet C0402C104Z4VACTU to view detailed technical specifications.
No datasheet is available for this part.
