Surface mount ceramic chip capacitor, 2.2nF capacitance, 50V voltage rating, and ±10% tolerance. Features X7R dielectric, 0402 (1005 metric) case code, and operates across a -55°C to +125°C temperature range. RoHS compliant with a 2.5% dissipation factor.
Package0402
Voltage50V
Capacitance2.2nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0402C222K5RACTU technical specifications.
General
| Capacitance | 2.2nF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Depth | 0.5mm |
| Dielectric | X7R |
| Dissipation Factor | 2.5% |
| Lead Free | Lead Free |
| Lead Pitch | 300um |
| Length | 1mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SMD Comm X7R |
| Thickness | 558.8um |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 500um |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C0402C222K5RACTU Datasheet
Download the complete datasheet for Kemet C0402C222K5RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

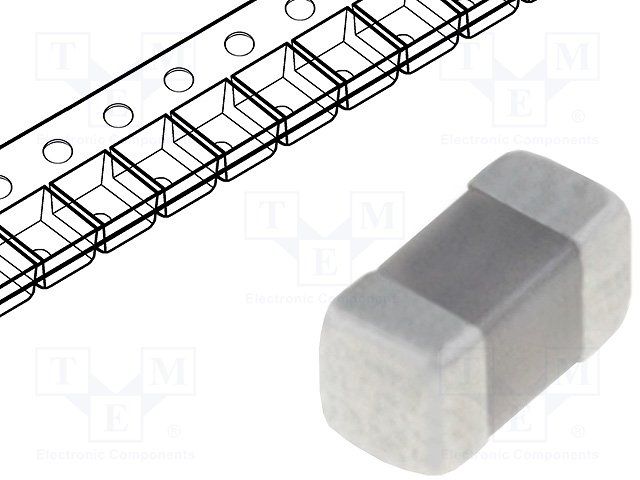

Product Images
