Multilayer Ceramic Capacitor (MLCC) with 22nF capacitance and 25V DC rating. Features X7R dielectric, 10% tolerance, and a 0402 (1005 metric) surface mount package. Operates from -55°C to 125°C with a dissipation factor of 3.5%. Tin, matte contact plating and ceramic construction. Supplied on tape and reel.
Package0402
Capacitance22nF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C0402C223K3RACTU technical specifications.
General
| Capacitance | 22nF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Flat |
| Contact Plating | Tin, Matte |
| Depth | 0.5mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 3.5% |
| Height | 0.5mm |
| Length | 1mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.022inch |
| Tolerance | 10% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C0402C223K3RACTU Datasheet
Download the complete datasheet for Kemet C0402C223K3RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

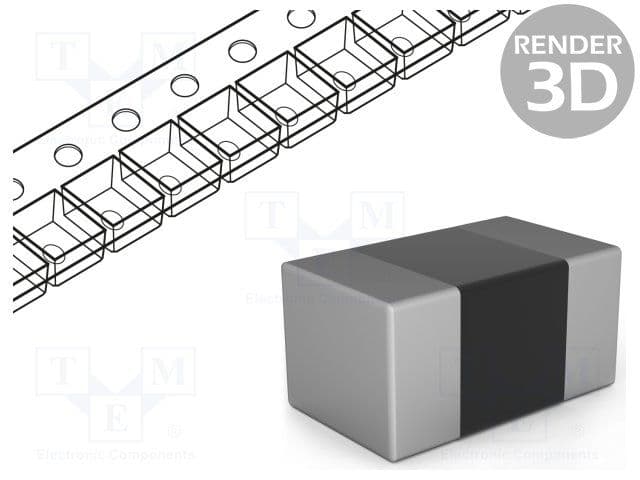

Product Images
