Multilayer Ceramic Capacitor (MLCC) with 10nF capacitance and 50V DC rating. Features X7R dielectric, 10% tolerance, and a 0.01µF value. Housed in a 0603 (1608 metric) SMD package with a maximum operating temperature of 125°C. This RoHS compliant component is supplied on tape and reel.
Package0603
Voltage50V
Capacitance10nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0603C103K5RACTU technical specifications.
General
Capacitance
10nF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.8mm
Dielectric
X7R
Dissipation Factor
2.5%
Height
0.8mm
Lead Free
Lead Free
Lead Pitch
0.7mm
Length
1.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
PCB, Surface Mount
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C0603C
Termination
SMD/SMT
Tolerance
10%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Kemet C0603C103K5RACTU Datasheet
Download the complete datasheet for Kemet C0603C103K5RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

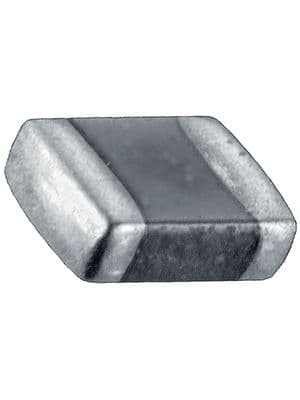

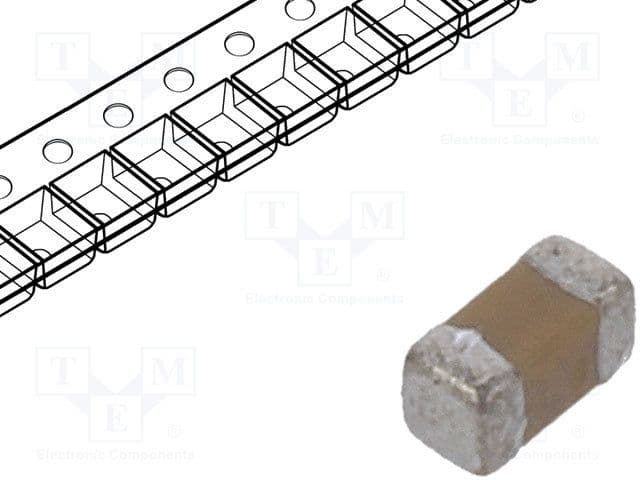

Product Images
