Multilayer Ceramic Capacitor (MLCC) with 150nF capacitance and 50V DC rating. Features X7R dielectric for stable performance across a -55°C to 125°C temperature range, with a 10% tolerance. Packaged in a 0603 (1608 metric) surface-mount case with tin matte plating. RoHS compliant and supplied on tape and reel.
Package0603
Voltage50V
Capacitance150nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0603C154K5RACTU technical specifications.
General
Capacitance
150nF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Contact Plating
Tin, Matte
Depth
0.8mm
Dielectric
X7R
Dielectric Material
Ceramic
Dissipation Factor
2.5%
Height
0.8mm
Length
1.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SMD Comm X7R
Termination
SMD/SMT
Thickness
0.034inch
Tolerance
10%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Kemet C0603C154K5RACTU Datasheet
Download the complete datasheet for Kemet C0603C154K5RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

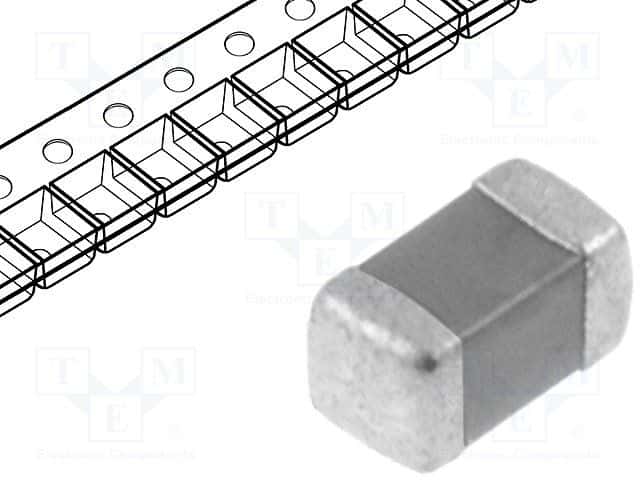

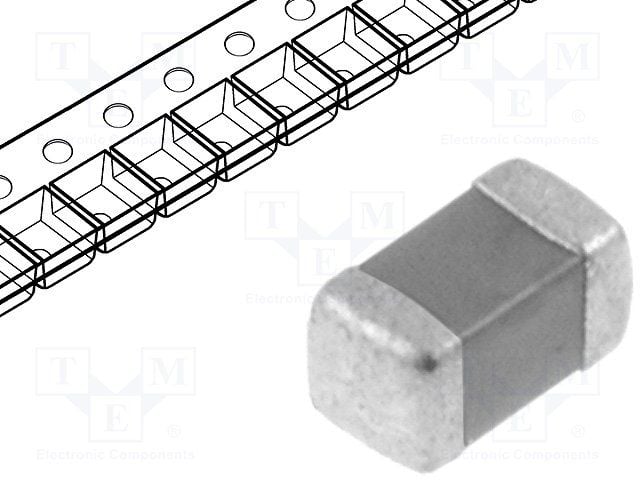

Product Images
