Multilayer Ceramic Capacitor (MLCC) with 18pF capacitance and 5% tolerance. Features C0G dielectric, 50V voltage rating, and operates from -55°C to 125°C. Packaged in a 0603 (1608 metric) surface mount case with tape and reel packaging. This component offers extreme low ESR and is RoHS compliant.
Package0603
Voltage50V
Capacitance18pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0603C180J5GACTU technical specifications.
General
Capacitance
18pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.8mm
Dielectric
C0G
Dissipation Factor
0.1%
Height
0.8mm
Lead Free
Lead Free
Lead Pitch
0.7mm
Length
1.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SMD Comm C0G
Termination
SMD/SMT
Thickness
863.6um
Tolerance
5%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Kemet C0603C180J5GACTU Datasheet
Download the complete datasheet for Kemet C0603C180J5GACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

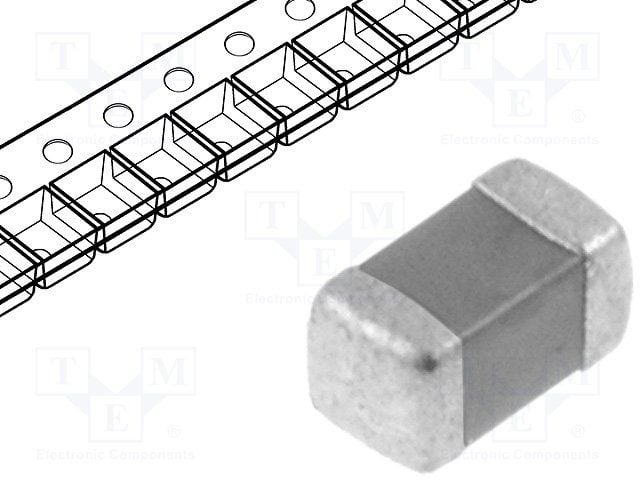

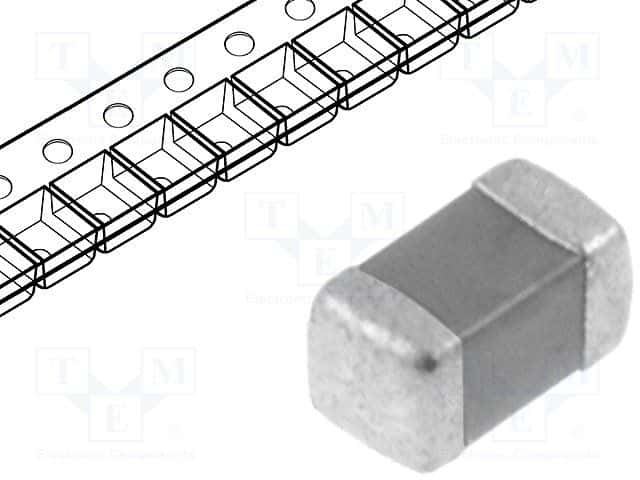

Product Images
