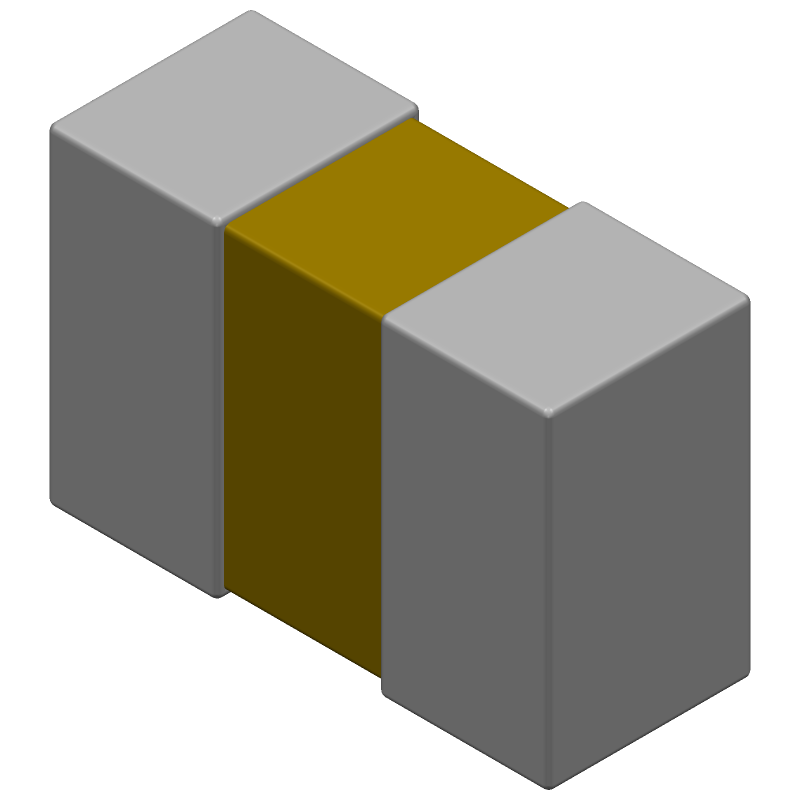

Surface mount ceramic chip capacitor, 100pF capacitance, 100V DC rated voltage, and ±10% tolerance. Features C0G dielectric for excellent temperature stability and low dissipation factor of 0.1%. Housed in an 0805 (2012 metric) case with dimensions of 2mm length, 1.25mm depth, and 0.78mm height. Operates across a wide temperature range of -55°C to +125°C. Lead-free and RoHS compliant, supplied on a 7" reel.
Package0805
Capacitance100pF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C0805C101K1GACTU technical specifications.
General
| Capacitance | 100pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Dissipation Factor | 0.1% |
| Height | 0.78mm |
| Lead Free | Lead Free |
| Lead Pitch | 0.75mm |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | SMD Comm C0G |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 10% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
