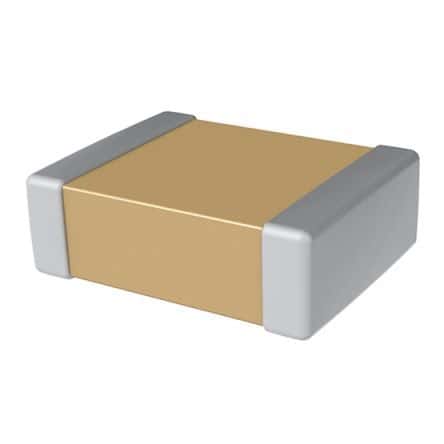

Multilayer Ceramic Capacitor (MLCC) with 1uF capacitance and 10V DC rated voltage. Features X7R dielectric material for stable performance across a -55°C to 125°C operating temperature range. This 0805 (2012 metric) case code component offers 10% tolerance and a 5% dissipation factor. Surface mount termination with lead-free construction, supplied in tape and reel packaging.
Package0805
Voltage10V
Capacitance1uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kemet C0805C105K8RACTU technical specifications.
General
Capacitance
1uF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Depth
1.25mm
Dielectric
X7R
Dielectric Material
Ceramic
Dissipation Factor
5%
Height
0.9mm
Lead Free
Lead Free
Lead Pitch
0.75mm
Length
2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C
Termination
SMD/SMT
Thickness
0.039inch
Tolerance
10%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
0.049inch
Compliance
RoHS
Compliant
