Surface mount ceramic capacitor with 22pF capacitance and 50V DC rated voltage. Features C0G dielectric for excellent temperature stability, ±5% tolerance, and an 0805 (2012 mm) case size. Operates across a wide temperature range of -55°C to +125°C. RoHS compliant and constructed with tin terminations on a 7" reel.
Package0805
Voltage50V
Capacitance22pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0805C220J5GACTU technical specifications.
General
| Capacitance | 22pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Contact Material | Tin |
| Contact Plating | Tin, Matte |
| Depth | 1.25mm |
| Dielectric | C0G |
| Height | 0.78mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SMD Comm C0G |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000194oz |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C0805C220J5GACTU Datasheet
Download the complete datasheet for Kemet C0805C220J5GACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

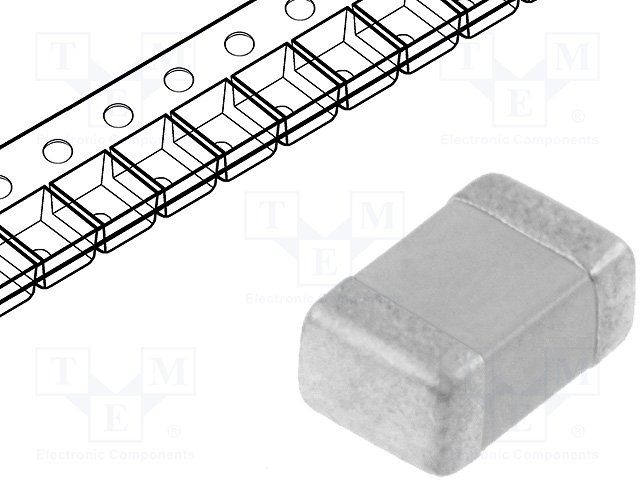

Product Images
