Surface mount ceramic chip capacitor featuring 2.2nF capacitance and a 50V DC rating. This general-purpose component utilizes an X7R dielectric with a ±10% tolerance, operating across a -55°C to +125°C temperature range. The 0805 (2012 metric) case code offers a 2mm length, 1.2mm width, and 0.78mm height. Designed for PCB mounting, it is lead-free and RoHS compliant.
Package0805
Voltage50V
Capacitance2.2nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C0805C222K5RACTU technical specifications.
General
Capacitance
2.2nF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Depth
1.25mm
Dielectric
X7R
Dielectric Material
Ceramic
Dissipation Factor
2.5%
Height
0.78mm
Lead Free
Lead Free
Lead Pitch
0.75mm
Length
2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SMD Comm X7R
Termination
SMD/SMT
Tolerance
10%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
1.2mm
Compliance
RoHS
Compliant
Datasheet
Kemet C0805C222K5RACTU Datasheet
Download the complete datasheet for Kemet C0805C222K5RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

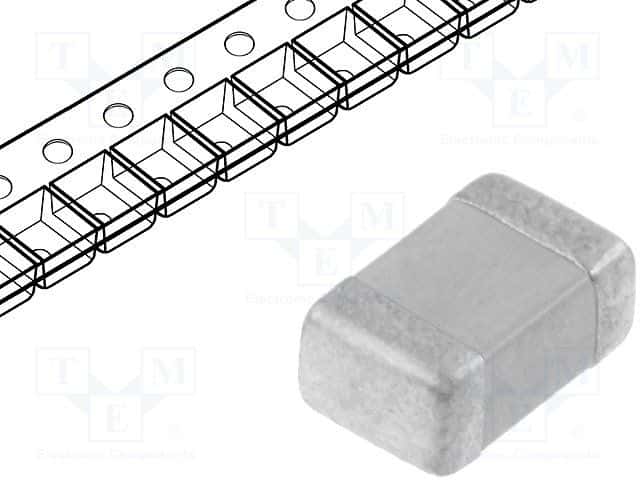

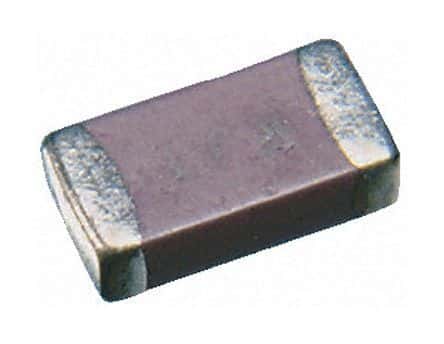

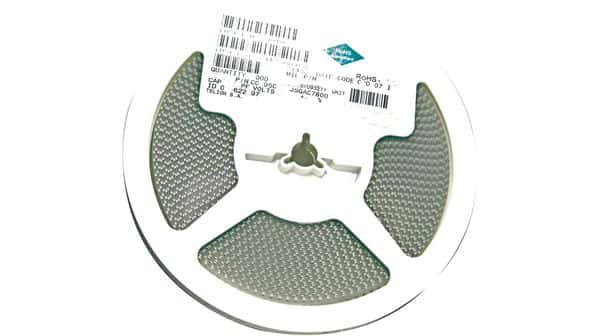

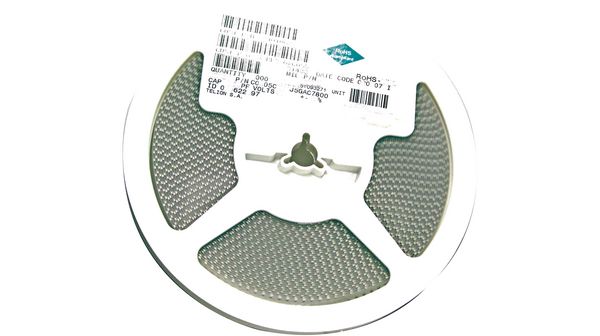

Product Images
