Surface mount ceramic chip capacitor, 33pF capacitance, 50V DC rated voltage, and ±5% tolerance. Features C0G dielectric for stable performance across a -55°C to +125°C operating temperature range. Housed in an 0805 (2012 metric) case with a flat construction. AEC-Q200 qualified and RoHS compliant.
Package0805
Capacitance33pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C0805C330J5GACAUTO technical specifications.
General
| Capacitance | 33pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Height | 0.78mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SMD Auto C0G |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C0805C330J5GACAUTO Datasheet
Download the complete datasheet for Kemet C0805C330J5GACAUTO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

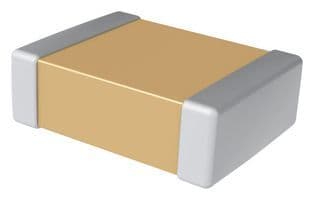

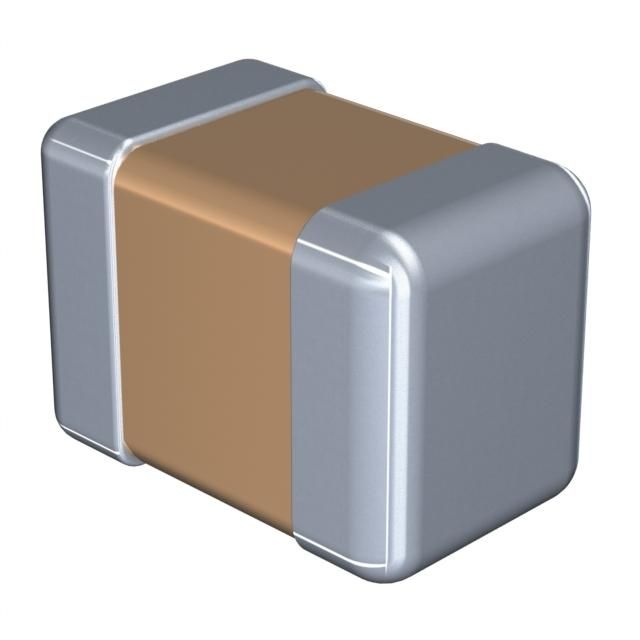

Product Images
