Multilayer Ceramic Capacitor (MLCC) with 22nF capacitance and 100V DC/AC voltage rating. Features X7R dielectric, 10% tolerance, and a 1206 (3216 metric) surface mount package. Operating temperature range from -55°C to 125°C. RoHS compliant, supplied on tape and reel.
Package1206
Capacitance22nF
Voltage Rating100V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Kemet C1206C223K1RACTU technical specifications.
General
| Capacitance | 22nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Height | 0.78mm |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SMD Comm X7R |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 10% |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 100V |
| DC Rated Voltage | 100V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C1206C223K1RACTU Datasheet
Download the complete datasheet for Kemet C1206C223K1RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

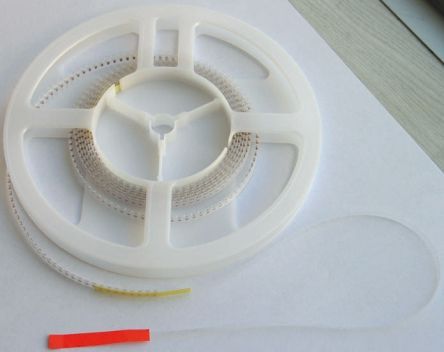

Product Images
