General purpose ceramic chip capacitor, 2.2µF capacitance, 50V voltage rating, and ±10% tolerance. Features X7R dielectric in a 1206 (3216 mm) surface mount case code. Operates from -55°C to +125°C with Sn/NiBar termination. RoHS compliant and supplied on a 7" reel.
Package1206
Voltage50V
Capacitance2.2uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C1206C225K5RACTU technical specifications.
General
| Capacitance | 2.2uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Height | 1.6mm |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.071inch |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C1206C225K5RACTU Datasheet
Download the complete datasheet for Kemet C1206C225K5RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

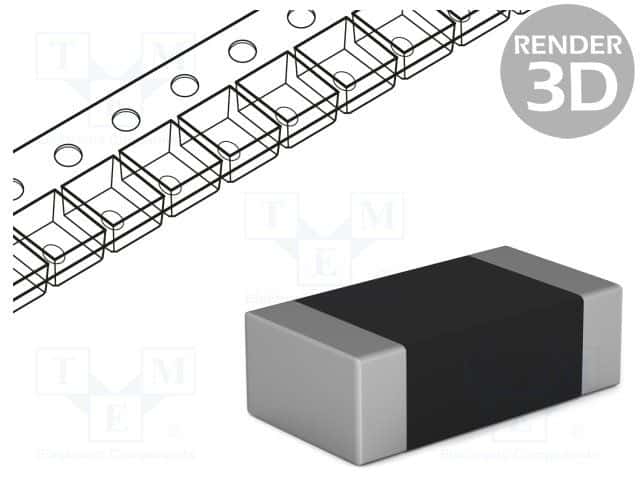

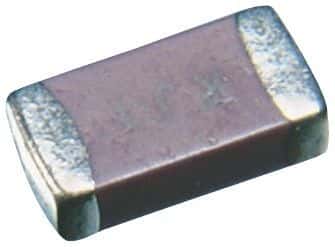

Product Images
