Multilayer Ceramic Capacitor (MLCC) with 470pF capacitance and 1000V DC rating. Features C0G dielectric for excellent stability and 5% tolerance. Designed for surface mount applications in a 1206 case code, operating from -55°C to 125°C. This lead-free, RoHS compliant component offers extreme low ESR and is suitable for automotive and medical applications. Packaged in tape and reel.
Package1206
Capacitance470pF
Voltage Rating1kV
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C1206C471JDGACTU technical specifications.
General
| Capacitance | 470pF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 0.126inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SMD Comm C0G HV |
| Termination | SMD/SMT |
| Thickness | 0.069inch |
| Tolerance | 5% |
| Voltage Rating | 1kV |
| DC Rated Voltage | 1kV |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C1206C471JDGACTU Datasheet
Download the complete datasheet for Kemet C1206C471JDGACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

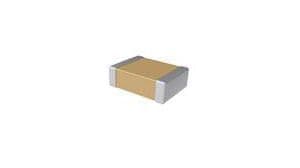

Product Images
