Multilayer Ceramic Capacitor (MLCC) with 10nF capacitance and 50V DC rating. Features C0G dielectric for stable performance across a wide temperature range (-55°C to 125°C). This surface mount component utilizes a 1210 (3225 metric) case code and offers a 5% tolerance with a dissipation factor of 0.1%. Designed for extreme low ESR, it is supplied on tape and reel for automated assembly.
Package1210
Voltage63V
Capacitance10nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kemet C1210C103J5GACTU technical specifications.
General
| Capacitance | 10nF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Dissipation Factor | 0.1% |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.047inch |
| Tolerance | 5% |
| Voltage | 63V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C1210C103J5GACTU Datasheet
Download the complete datasheet for Kemet C1210C103J5GACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

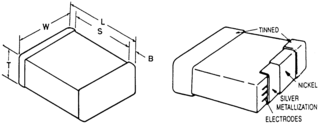

Product Images
