Multilayer Ceramic Capacitor (MLCC) with 10µF capacitance and 25V DC rating. Features X7R dielectric for stable performance across a -55°C to 125°C temperature range, with a 10% tolerance. Surface mountable in a 1210 (3225 metric) case code, measuring 3.2mm x 2.5mm x 2.5mm. Automotive qualified to AEC-Q200 standards and RoHS compliant.
Package1210
Capacitance10uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C1210C106K3RACAUTO technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Height | 2.5mm |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | C |
| Thickness | 0.106inch |
| Tolerance | 10% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C1210C106K3RACAUTO Datasheet
Download the complete datasheet for Kemet C1210C106K3RACAUTO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

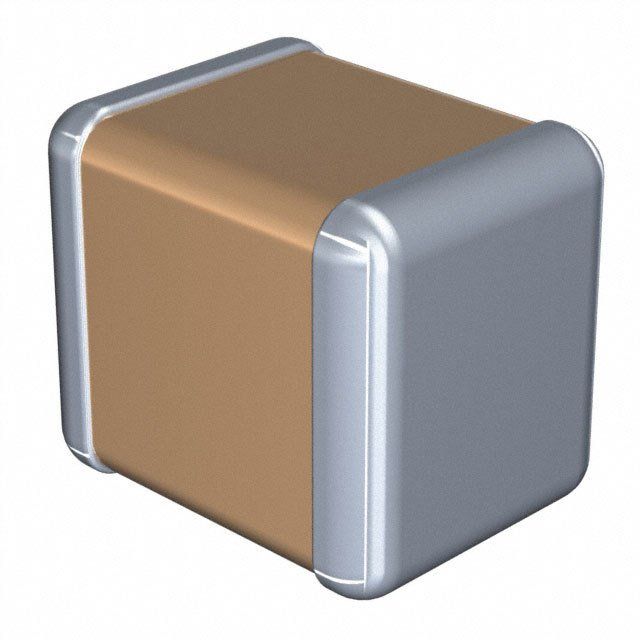

Product Images
