Kemet C1632C221K5GACTU technical specifications.
General
| Capacitance | 220pF |
| Package/Case | 0612 |
| Depth | 1.6mm |
| Dielectric | C0G |
| Height | 1.35mm |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Capacitors | 4 |
| Number of Elements | 4 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CxxxxC C0G |
| Terminal Pitch | 0.8mm |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C1632C221K5GACTU Datasheet
Download the complete datasheet for Kemet C1632C221K5GACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

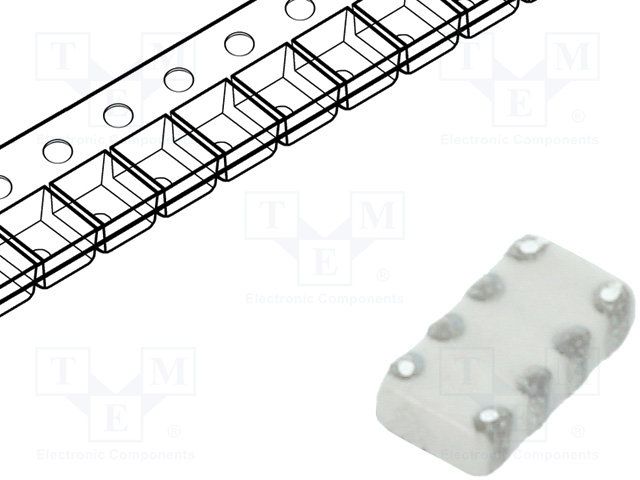

Product Images
